TKC nhập khẩu và phân phối van điều khiển STERI-TROL Aseptic Spirax Sarco.
STERI-TROLTM 'S' series are 316L stainless steel, two-port and three-port control valves. They are designed for mixing / diverting fluids (three-port only), and for on / off and modulating control of clean steam, pure steam and process fluids. The valve is operated by a pneumatic actuator and may be interfaced with a control system using any of the Spirax Sarco range of positioners.
Available types:
SB Two-port angle pattern design with aseptic steam sanitised bonnet
SA Two-port angle pattern design (for chemical free steam)
Valve characteristics -options :
SAE SBE : Equal percentage (E) - Suitable for most modulating process control applications and good control at low flowrates.
SAL SBL: Linear (L) - Primarily for liquid flow control where the differential pressure across the valve is constant.
STERI-TROLTM Aseptic Service 'S' Series Two-port Pneumatic Control Valves - DN15 (½") to DN100 (4").
Một bộ van thường sẽ bao gồm
- Control valve 2 port
- Filter/Regulator
- Electro-Pneumatic Positioner
- Pneumatic Actuator
Ví dụ :

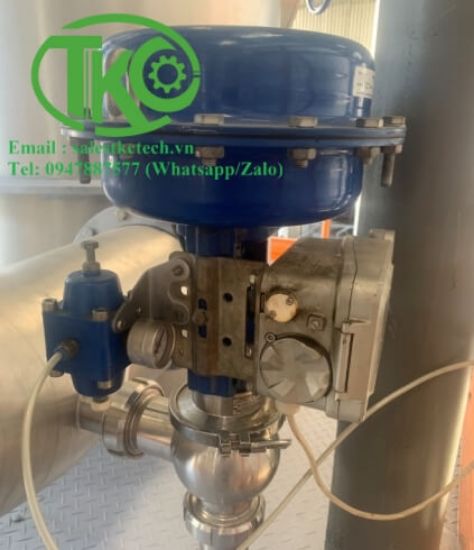

Bộ van SAE6
-Control valve 2 port model SAE6 size DN50, PN16,
- Filter/Regulator 3.5 ÷ 7 bar, model : FR 75
- Electro-Pneumatic Positioner, model EP500
- Pneumatic Actuator, model PN9123E
Bảo hành 12 tháng.Xuất xứ ITALY.
