TKC nhập khẩu và phân phối thiết bị Spirax Sarco

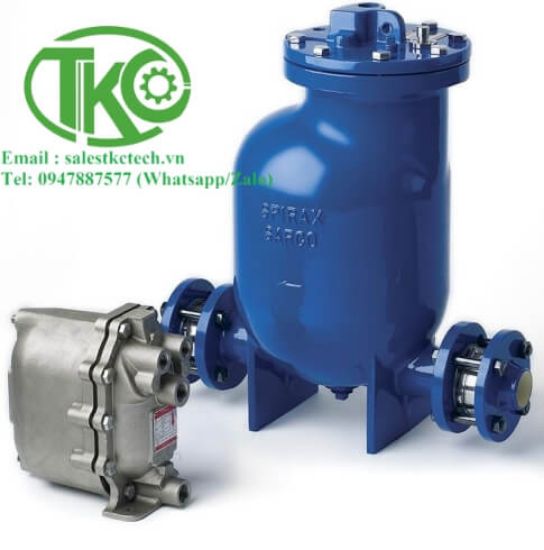

Description :The Spirax Sarco MFP14 automatic pump is a displacement receiver operated by steam or compressed air. It is generally used to lift
liquids such as condensate to a higher level. Subject to the conditions being suitable, the pump can also be used to directly drain closed
vessels under vacuum or pressure. In conjunction with a float steam trap the pump can be used to effectively drain temperature controlled
heat exchangers under all operating conditions.
Chúng ta có thể lựa chọn model dựa trên vật liệu như sau:
MFP14 body materials SG iron (gang cầu).
MFP14S body materials Cast steel (thép đúc).
MFP14SS body materials Stainless steel.
Sizes and pipe connections
MFP14 SG iron
- 1", 1½", 2" and 3" x 2" screwed BSP (BS 21 parallel).
- DN25, DN40, DN50 and DN80 x DN50 flanged
- EN 1092 PN16, ANSI B 16.5 Class 150 and JIS/KS B 2238 10.
MFP14S Cast steel
- DN50 flanged EN 1092 PN16, ANSI B 16.5
- Class 150 and JIS/KS B2238 10.
- 2" screwed BSP/NPT connections are available to special order.
MFP14SS Stainless steel
- DN50 flanged EN 1092 PN16, ANSI B 16.5
- Class 150 JIS/KS B 2238 10.
- 2" screwed BSP/NPT connections are available to special order.
Optional extras
Electronic pump monitors
A plugged boss is provided on the pump cover, screwed ½" BSP for connecting an electronic pump monitor
(For full details see TI-P136-24):
- EPM1
A simple stand-alone unit with an 8 digit LCD display, powered by an integral 1.5 V lithium battery.
- EPM2
A version suitable for coupling to a remote counter/building energy management system (BEMS).
How to order
Example: 1 off Spirax Sarco DN50 MFP14 automatic pump having flanged EN 1092 PN16 connections with BSP motive fluid connections,
complete with check valves and 2" BSP screwed boss flanges.
https://content.spiraxsarco.com/-/media/spiraxsarco/international/documents/en/ti/mfp14-ti-p136-02-en.ashx?rev=44f0d9fd24f74cdaaff2e7b498b21bbc
