TKC nhà nhập khẩu phân phối Khớp nối DAIDO thương hiệu Nhật Bản.

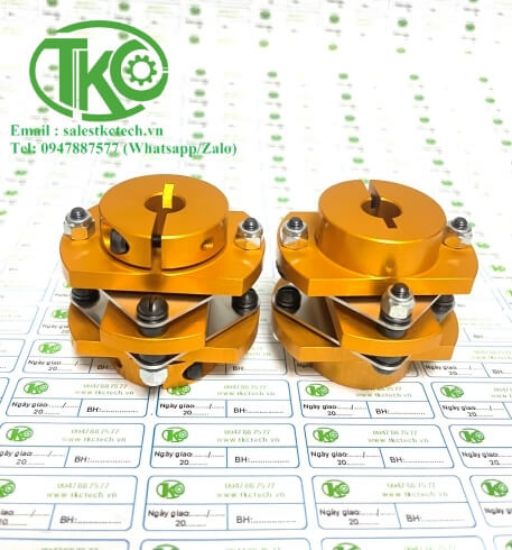

Micro Coupling DAIDO PRECISION Model M2FC-10BC/10BC
Thông số
M : Series, Standard Type, Aluminum Alloy
2 : Model Number
FC : Shaft Fixing System, Shortened Length
10 : Diameter of Bore in Hub, 10 mm
BC : Shape of Bore in Hub, Clamping System
10 : Diameter of Bore in Hub, 10 mm
BC : Shape of Bore in Hub, Clamping System
How to order Micro Coupling M1, M2, M3, M4, V1, V2, U15, U2, U25, M15, V15.
- Rated Torque : 15 N-m
- Torsional Rigidity : 7.3x103 N-m/rad
- Maximum Rotating Speed : 20,000 min-1
- Working Temperature Range : -30 to 100C
- Weight : 0.075 kg
Model List : M2FC-6BC/6BC , M2FC-7BC/7BC, M2FC-9BC/9BC, M2FC-11BC/11BC, M2FC-12BC/12BC, M2FC-13BC/13BC, M2FC-14BC/14BC.
