TKC nhà nhập khẩu phân phối Khớp nối DAIDO thương hiệu Nhật Bản.

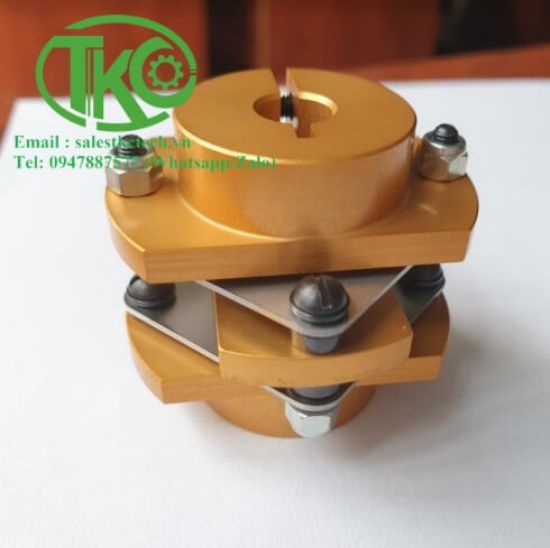

Micro Coupling DAIDO PRECISION Model M2FC-8BC/8BC.
Thông số
M : Series, Standard Type, Aluminum Alloy
2 : Model Number
FC : Shaft Fixing System, Shortened Length
8 : Diameter of Bore in Hub, 8 mm
BC : Shape of Bore in Hub, Clamping System
8 : Diameter of Bore in Hub, 8 mm
BC : Shape of Bore in Hub, Clamping System

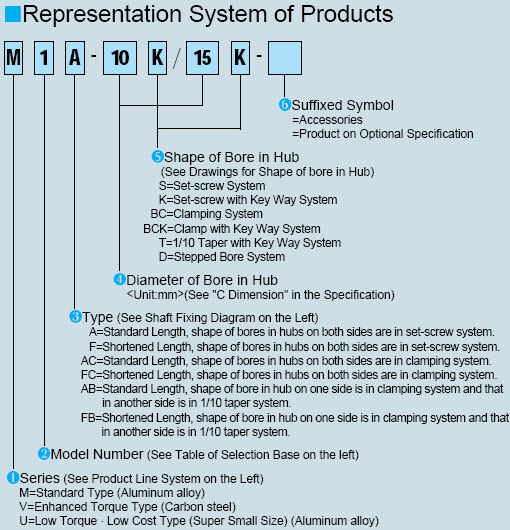

How to order Micro Coupling M1, M2, M3, M4, V1, V2, U15, U2, U25, M15, V15.
- Rated Torque : 15 N-m
- Torsional Rigidity : 7.3x103 N-m/rad
- Maximum Rotating Speed : 20,000 min-1
- Working Temperature Range : -30 to 100C
- Weight : 0.075 kg
Model List : M1FC-8BCK/8BCK, M1FC-9BCK/9BCK, M1FC-10BCK/10BCK, M1FC-11BCK/11BCK, M1FC-12BCK/12BCK, M1FC-13BCK/13BCK,
M1FC-14BCK/14BCK, M1FC-15BCK/15BCK, M1FC-16BCK/16BCK, M1FC-17BCK/17BCK, M1FC-18BCK/18BCK, M1FC-19BCK/19BCK.
M1FC-20BCK/20BCK, M1FC-21BCK/21BCK, M1FC-22BCK/22BCK
