Rotay encoder incremental LIKA-Ý.
Seri I58-I58S.
Output circuit NPN; PNP; Push-Pull; Line Driver; Universal circuit; sin/cos.
Dimension Ø 58 mm.Shaft Ø 6; 8; 9.52; 10; 12 mm.
Connections M12 or M23 connector, cable output
Resolution 10000 PPR max.
Shaft rotational speed 12000 rpm.Protection IP64 (IP65)

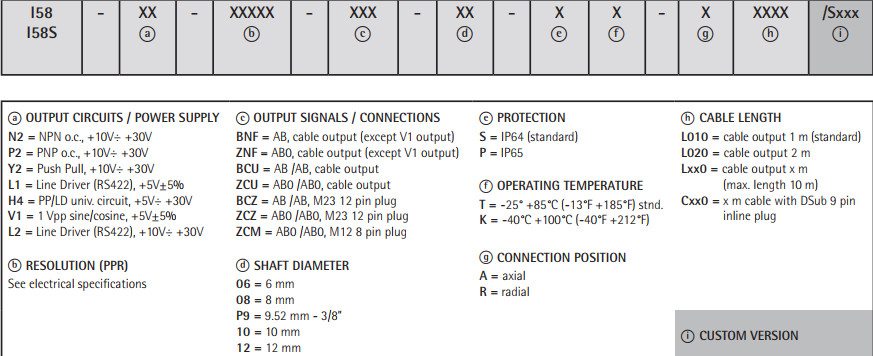

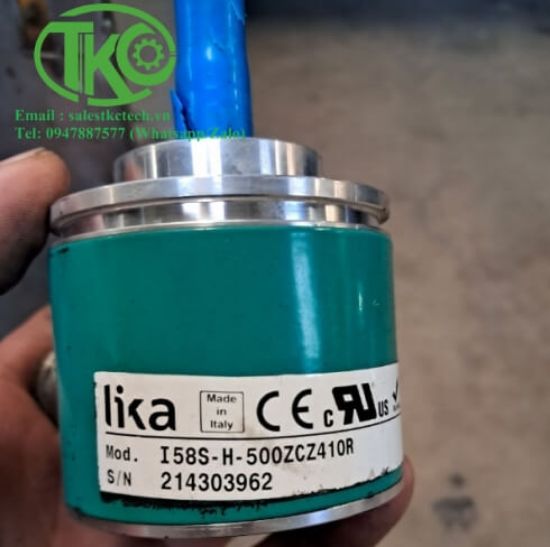

Model list : I58S-H-500ZCZ410R, I58-H-2048ZCU46RL2, I58-H-1024ZCU48RL7
