Cung cấp thiết bị đo NAGANO KEIKI-JAPAN.

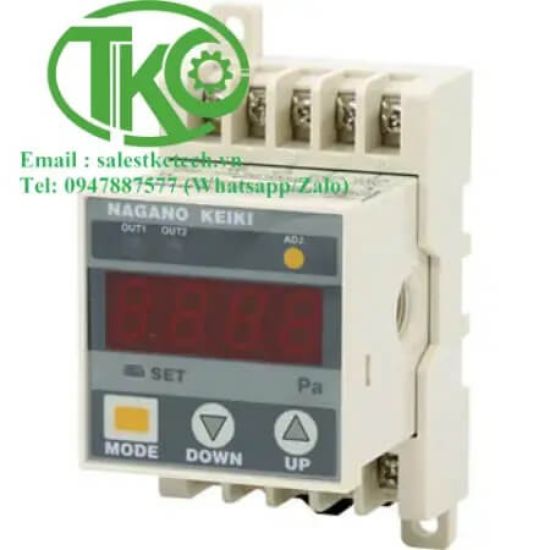

Digital Differential Pressure Gauge Series GC62

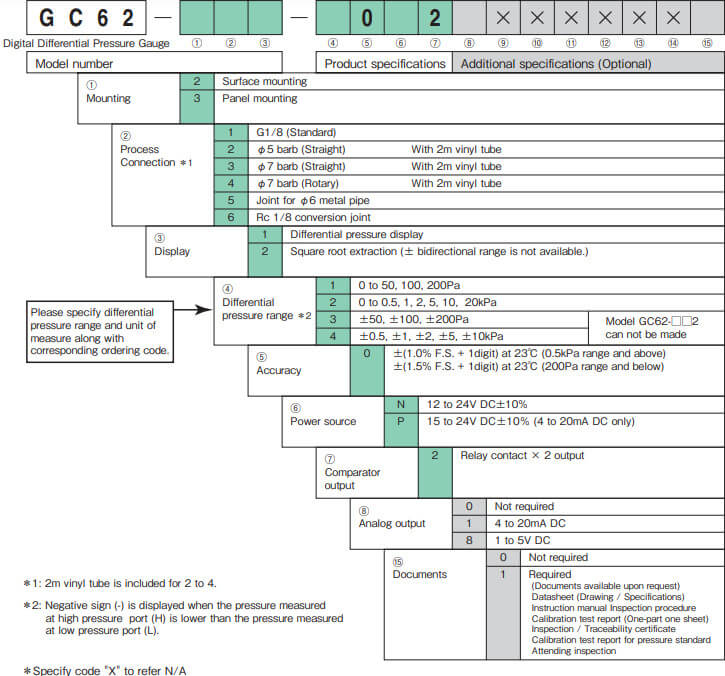

Model GC62-231-30N20.
Operating Temperature Range (℃) : -10 to 50 (no freezing or condensation)
Range : -200～200Pa
Power Supply : 12 to 24V DC ± 10% (15 to 24V DC ± 10% at 4 to 20mA output)
Display Update Cycle : 200ms
Type of Display 4-digit LED digital display (character height 10 mm)
Maximum pressure (kPa) 50 (however, 10 or more is 100)
Withstand pressure (kPa)50kPa (100kPa for 10kPa and above)
Mass (g) About 140
Accuracy Differential pressure display accuracy: ± (1.0% FS + 1digit) at 23 ℃ (0.5kPa or more), ± (1.5% FS + 1digit) at 23 ℃ (200Pa or less)
Measurable Fluid Dry air, nitrogen gas (does not contain moisture or dust)
Case Structure Indoor specification (IP40 IEC standard)
Remark No output
Comparator Output Relay contact x 2 outputs (110V AC, 0.2A resistance load) Response speed: 5ms or less (GC62- □□ 2: 10ms or less) Connection difference: Hysteresis mode variable, Window comparator mode 1% FS fixed delay: 0 to 2.00s (ON and OFF) Operation indicator: Red LED (OUT1, 2) lights when ON
Function Scaling / display value, analog output, loop check / comparator output, analog output, filter / none, 25 ms, 250 ms, 2.5 s, 5 s, 10 s (time constant), error display / out-of-range pressure during zero adjustment, Hold / peak value, bottom value display, other / one-touch zero adjustment, key lock
Included Accessories Vinyl tube 2m
