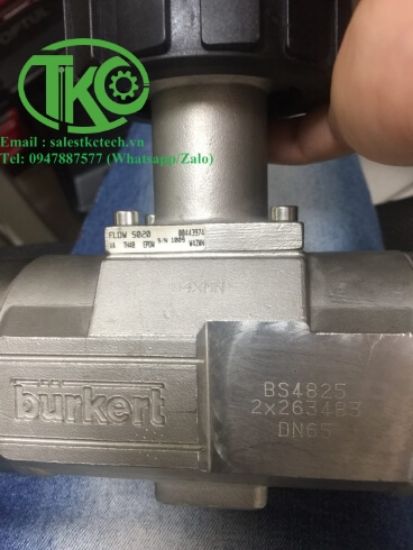

TKC nhập khẩu và phân phối Fitting for insertion sensor Burkert
Type S020 code 00443974(443974)
Order code : S020-TG07-VAAA-00-0-00-0-000/00-0 * NK52+NO06
Port connection TG07 Clamp 77,5 x 63,5 x 1,65 (3,047" x 2,500" x 0,065") according to ASME BPE (usable for BS 4825-3 for pipe BS 4825-1)
Body material VA stainless steel
Seal material AA EPDM
Sensor 00 without sensor
Measuring range 0 no description
function sensor 00 without
Design 0 without
Voltage 000 without coil COIL
Frequency 00 without
Output signal 0 standard
Special Feature NK52 with certification 3.1
NO06
Internal polished Ra <= 0,76 micrometer / <= 30 microinch (ASME BPE SF 3 / DIN H2)
Pressure range
0 - 16 bar
Xuất xứ France.Bảo hành 12 tháng.
