TKC phân phối thiết bị bẫy hơi Spirax Sarco
Brass Balanced Pressure Thermostatic Steam Trap.
BPT13 là một bẫy hơi nhiệt tĩnh áp suất cân bằng, có thân bằng đồng thau dễ bảo trì. Bẫy tiêu chuẩn được chỉ định là BPT13A với các góc kết nối.
Được dùng nhiều trong hệ thống sấy ngành dược, ngành dệt...
Available types :
BPT13A Angled connections (standard trap)
BPT13AX Angled connections with strainer screen

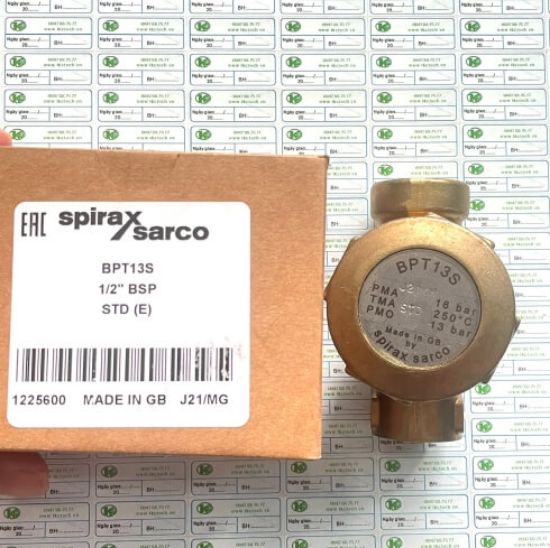

BPT13S Straight connections
BPT13SX Straight connections with strainer screen
BPT13UA Angled connections, union inlet
BPT13UAX Angled connections, union inlet with strainer screen
BPT13US Straight connections, union inlet
BPT13USX Straight connections, union inlet with strainer screen
Sizes and pipe connections : 3/8",½" and ¾" screwed BSP (BS 21 parallel) or NPT.
Capsule fill and operation : STD, SUB, NTS
When placing an order always state the capsule fill Standard capsule - Is marked with
-'STD' for operation at approximately 12°C below steam saturation temperature. Optionally
- The capsule can be supplied for sub-cooled 'SUB' operation at approximately 24°C below steam saturation temperature.
- For critical applications the 'NTS' fill capsule should be selected which operates at approximately 4°C below steam saturation temperature.
Xuất xứ UK.
